Basic door frame



Table with example for calculating door frame dimensions


POSITION

P1

F1

Z1

O1

P2

F2

Z2

O2

M

FORMULA

/

P1+32

P1+80

P1+112

/

P2+16

P2+40

P2+56

40/50/60

DIMENSION

800

832

880

912

1980

1996

2020

2036

40



Fanlight door frame




Table with example for calculating dimensions of door frame with fanlight


POSITION

P1

F1

Z1

O1

P2

F2

Z2

H

Z3

G

M

FORMULA

/

P1+32

P1+80

P1+112

/

P2+16

H-20

/

H+10

H-P2-106

40/50/60

DIMENSION

800

832

880

912

1980

1996

2480

2500

2510

414

40



Determining dimensions for the KD.OR orchidea door frame

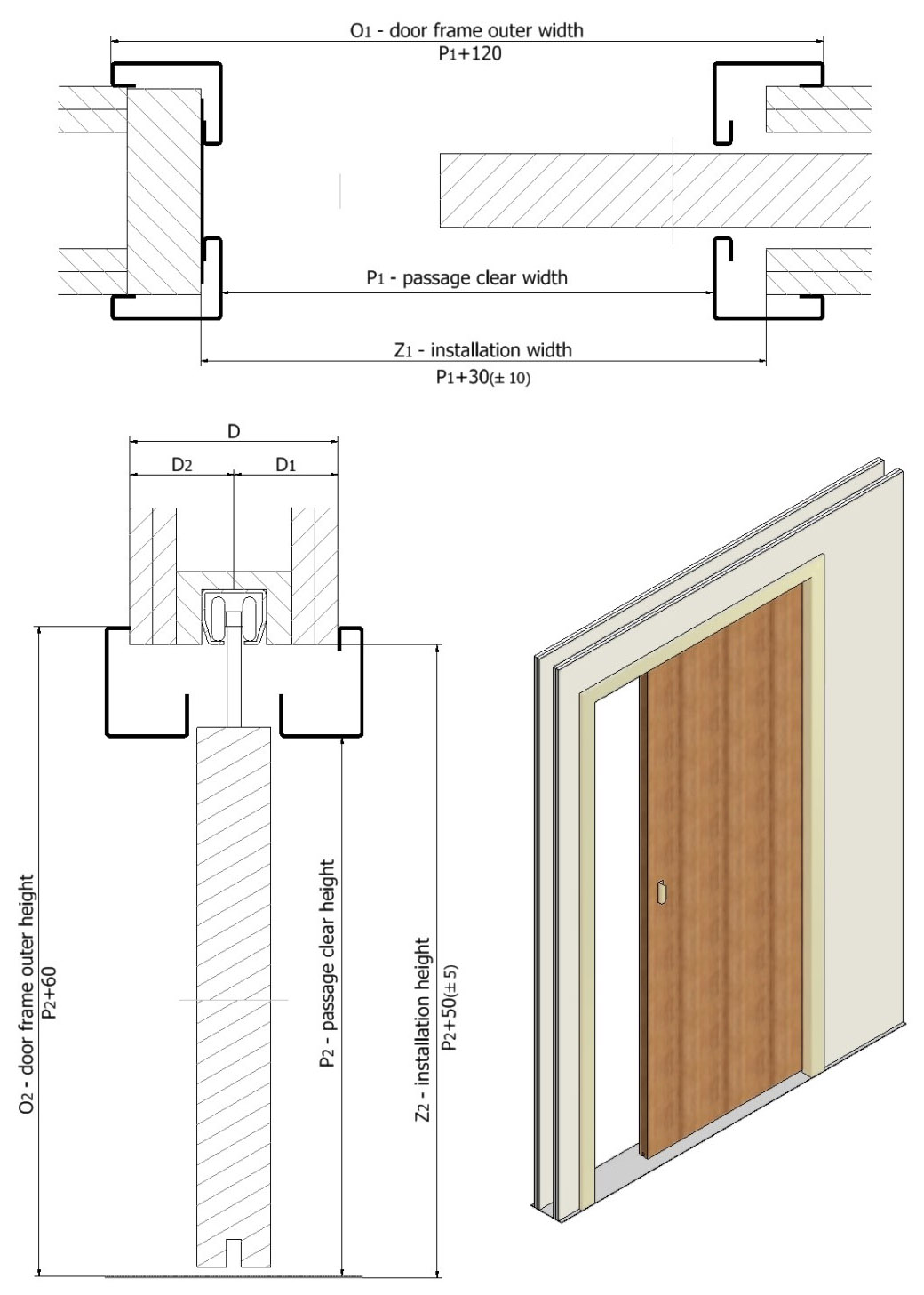

Determining the height and width of the KD.OR door frame

POSITION

P1

Z1

O1

P2

Z2

O2

M

FORMULA

/

P1+30

P1+120

/

P2+50

P2+60

60

DIMENSION (mm)

800

830

920

2000

2050

2060

60

Determining wall thickness

POSITION

T

T1

T2

FORMULA

/

T = T1 + T2

DIMESIONS (mm)

175

100

75
